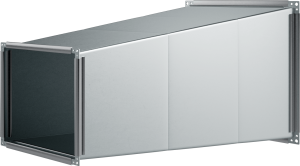

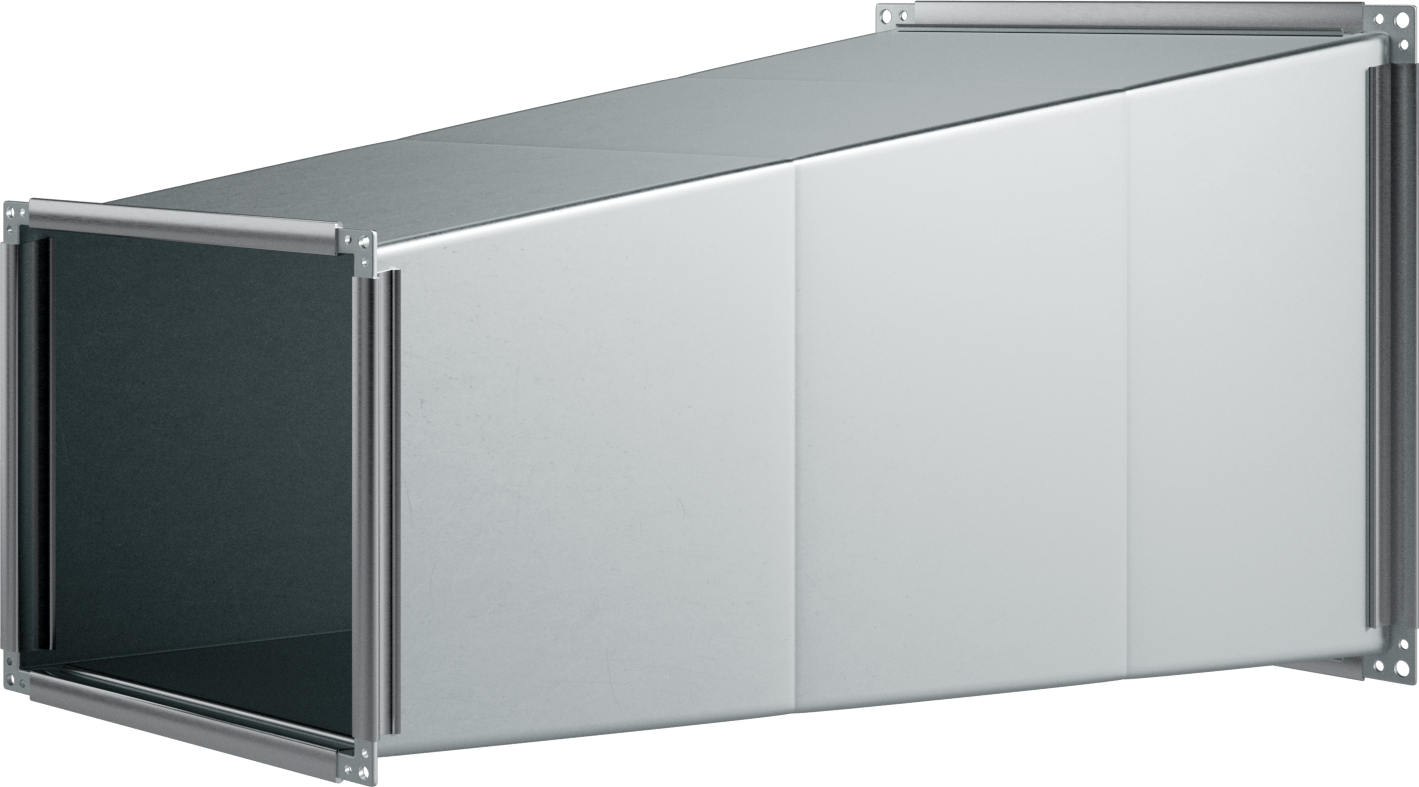

Duct transitions RKA and RKA-S allow seamless size changes between rectangular duct sections. Designed for minimal pressure loss, they ensure efficient airflow and reliable performance in complex systems.
These transitions are used to connect ducts of different sizes while maintaining stable airflow throughout the system. The symmetrical and asymmetrical versions provide design flexibility, allowing easy adaptation to space constraints and installation requirements.
RKA and RKA-S transitions are typically manufactured from galvanized sheet metal or stainless steel, ensuring durability and resistance to corrosion. They are available in various sizes to meet specific project needs and installation standards.
Installation is simple and carried out using standard rectangular duct connections, ensuring quick and airtight assembly. In practice, these transitions are an important component for optimizing airflow and maintaining system efficiency in complex installations.
| Dimension (mm) | Parameter 1 | Parameter 2 |
|---|---|---|
| 100x100 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 150x100 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 200x100 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 150x150 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 200x150 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 250x150 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 200x200 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 250x200 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 300x200 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 250x250 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 300x250 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 350x250 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 300x300 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 350x300 | 0.6, 0.7, 0.8 | 1250, 1500 |
| 400x300 | 0.6, 0.7, 0.8 | 1250, 1500 |
| ... | ... | ... |
| 1000x1000 | 0.6, 0.7, 0.8, 1.0, 1.2 | 1250, 1500 |
| ... | ... | ... |
| According to project/technical specification | 0.6, 0.7, 0.8, 1.0, 1.2 | 1250, 1500 |
